ALL IN ONE SERIES
A fully integrated energy storage solution

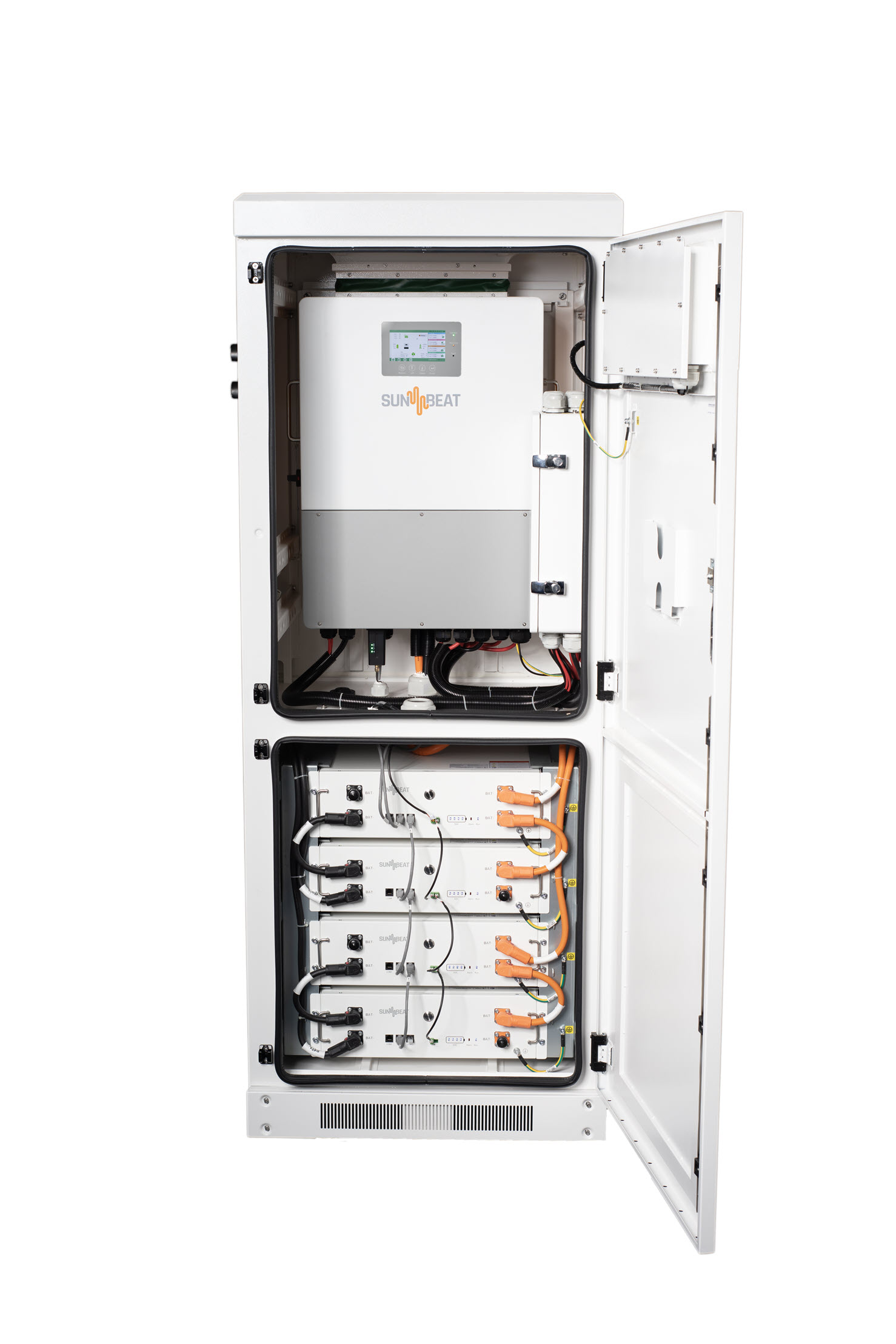

Every cabinet contains LFP batteries, inverter, circuit breakers and comes pre-wired for fast, efficient installations that eliminates the need for additional external components.
Up to 4 battery modules are easily removable for transport, servicing and offer redundant backup to assure continuous operation.
Rated for 6000 cycles and IP55 with a standard 10 year warranty extendable up to 20 years.
Configurations available:
Capacity Output
SB5110- 10KWh 5K
SB7615 15KWh 7.6K
SB1220 20KWh 12K
SPECIFICATIONS
| SB5110 | SB7615 | SB1220 | |
|---|---|---|---|
| System capacity (KWh) | 10 | 15 | 20 |
| Rated Voltage | 51.2V | ||
| Max continuous charging | 100A | 150A | 250A |
| Max continuous discharge | 167A | 210A | 240A |
| Inputs | 2AC (grid/generator), 1DC (PV) | ||
| PV max input | 7.5K | 12K | 18K |
| Output voltage | 120/240Vac (split phase 120/208) | ||
| Frequency | 60Hz | ||
| Weight | 683lbs | 771lbs | 860lbs |
| Size | 28.4” x 72.9” 22.5” | ||
| Protection | IP55 | ||
| Warranty | 10-year warranty, extendable up to 20 years | ||
WARRANTY
• The initial warranty period provided for the product.
• Sunbeat Energy warrants that products will be free from defects for ten years after installation.
• Please download the full limited warranty here.
